Manati Sugar Company #18

Specifications:

Builder:  Baldwin Locomotive Works

Wheel Arrangement: 2-6-6-2

Tank or tender type: tender

Build date: 1916

Serial number: 44693

Class Numbers: 16 23/38 1/4 DD 3, drawing number 2

Gauge: 3 ft.

Driver diameter: 41 in.

Boiler pressure: 200 psi

Cylinder dimensions:  14.5 & 22x20 in

Grate area:  25.8 sq ft

Tractive effort:  24,600 lbs

Weight in working order:  139,000 lbs

Fuel:  6 tons

Water capacity:  3500 gal

Painting: Style 291, Olive Green and Aluminum

Boiler Jacket: Planished steel.

Service History:

1916-19??:  Manati Sugar Company #18.  Cuba.

Disposition after service:

Out of service by 1947 and later scrapped.  Does not appear on 1974 Minaz countrywide renumbering list.

Notes:

Summary:

Pictures:

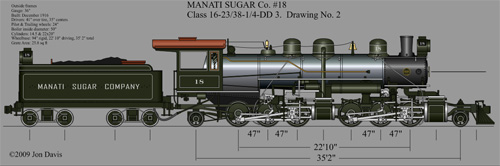

Drawing:  Manati Sugar Company #18 as built - 1916
